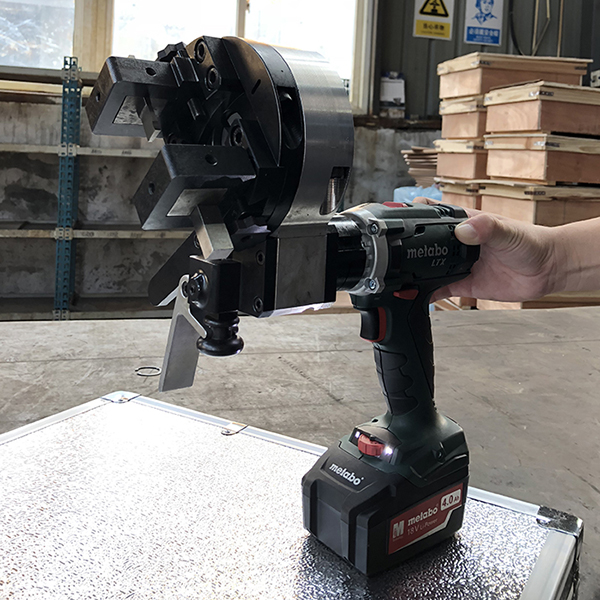

Micro external installation pipe cutting and beveling machine

• Model: ISD/ISF
  Scope: Ф 12.5-152.4mm
  Process: Cutting simultaneously with bevels, pipe cutting
  Drive: pneumatic, electric
•

• Product Description

•
  Small diameter lightweight external installation pipe cutting and beveling machine, used for cutting and beveling preparation before installing and welding small diameter pipes. The body is a split ring structure, which is very convenient for disassembly and assembly. It can be installed at any position in the pipeline and is a movable pipeline cutting groove tool. This series of products is the smallest and most compact lightweight segmented pipe cutting and beveling machine. Its design is clever, the mechanism is compact, the volume is small, and interference is avoided. It is especially suitable for narrow construction areas, such as pipes, bends, pipe supports, etc. It is widely used in industries such as boilers, power generation, petroleum, natural gas, and shipbuilding.

•
  Product features:

•
  1. A lightweight cutting tool developed for on-site cutting of small diameter pipelines;
  2. Clever design, compact structure, small volume, avoiding interference;
  3. Aluminum alloy body, lightweight, can be operated with one hand;
  4. Hinged split body, can be installed at any position in pipelines;
  5. One clamping, cutting and beveling simultaneously;
  6. Complete cold cutting method without changing the material of the pipe;
  7. Automatic feed, no need for manual adjustment, high efficiency, high quality;
  8. Machinable cutting groove forms: U-shaped, V-shaped, J-shaped;
  9. There are a total of 9 models, applicable range: 12.5-152.4mm (0.5 "to 6");
  10. Single unit range span 0.5 "or 1"
  11. Optional driving methods: electric or pneumatic

•
  Processing function:

•
  1. Pipeline cutting; 2. Pipe end groove; 3. Flat end of pipe; 4. Simultaneously cutting off the groove

•



  Slope type:

•
  V-shaped groove, J-shaped groove, U-shaped groove, double-sided groove

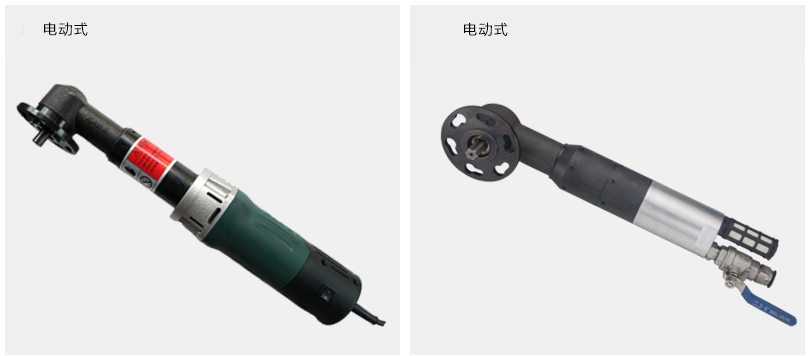

Drive parameters:
1. Electric:
Power supply: 50-60Hz, 220-230V, 1P
Power: 1.43KW, can also be optionally equipped with a rechargeable motor
Voltage: 14V
2. Pneumatic:
Gas source: 1500-2000L/min @ 0.63-0.8Mpa
Power: 1.1HP or 2HP
